COMfalcon®

Extremely flexible VCI with numerous interfaces and high-performance PowerPC. Ideal for use in de­vel­op­ment, production and service app­li­ca­tions

Key Features

  • 4× CAN interface acc. to ISO 11898
  • WLAN interface
  • RS 232, RS 422, RS 485, K-Line
  • Protocol handling
  • Optional with data logging, scripting, CAN voltage level oscilloscope functionality
  • Optional with integrated SD Card
  • Compact housing with protection class IP65

Description

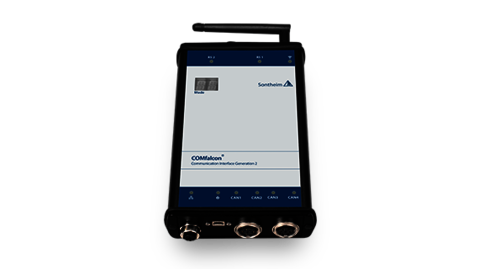

Housing and Status display
The interface has a robust aluminium housing with protection class IP65. Due to the com­pact design and the high shock resistance COMfalcon® can be used in different areas of the auto­ma­tion and au­to­mo­tive industry. Two 14-segment displays and nine LEDs always indicate the current operating status/error code of the device.


Interfaces
COMfalcon® has four CAN interfaces in total and is based on the CAN interface CIN with Freescale PowerPC architecture. The con­nec­tion to the dia­gnos­tic PC is es­tab­lished via WLAN/LAN. In addition to the CAN chan­nels, various other inter­faces such as RS232, RS422, RS485 or K-Line are available for diagnostic purposes.

Error frame detection
With this feature COMfalcon is able to take over the troubleshooting and diagnosis in a CAN network. The interface has its own logic, which detects error frames and counts them in an internal memory. Thus sporadic errors, such as the fal­si­fi­ca­tion of messages by a par­tic­i­pant in the network, can be detected.


ID related level measurement – resistance measurement / current meas­urement
This feature enables the CAN levels to be read in IO-related as well as active and passive ter­mi­na­tion re­sis­tors to be measured and thus, for example, to carry out fault dia­gno­sis on a vehicle or machine. This is par­tic­u­larly important if data is lost from the net­work, which can be caused by short circuits, for example.

Technical Data

CPUFreescale PowerPC
RAM64 MB
Memory16 MB (for data logging optionally up to 128 MB)
CAN4× CAN interface acc. to ISO 11898
Baud rates50 Kbit/s up to 1 Mbit/s
CAN termination resistance measurementTerminating resistor of the vehicle CAN network with active bus

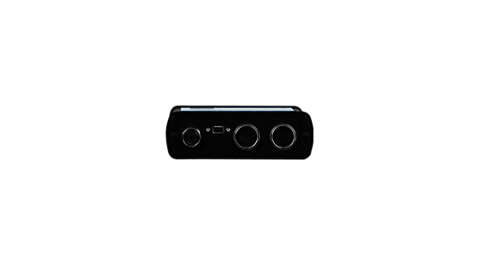

CAN Port2× 7-pole M16 port (like Sontheim CANUSB-2)

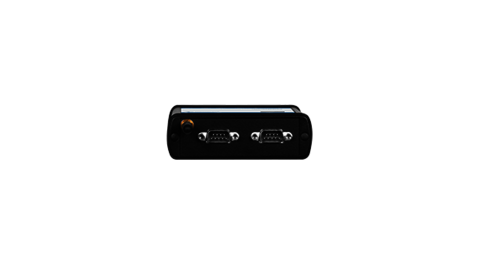

RS232D-Sub9 Plug A
Serial multiplex interfaceD-Sub9 Plug A
5 different serial interfaces, changeable via software
K-/L-LineK-/L-Line (acc. to ISO 9141-2, ISO 14230-4)
Baud rate up to 56 kBaud/s
RS485EIA/TIA-485 compatibel
Baud rate up to 10 Mbit/s
no integrated termination resistor
RS422ANSI/TIA/EIA-422 compatibel
Baud rate up to 10 Mbit/s
no integrated termination resistor
LANM12 4-pin female connector
100 Mbit LAN, D-coded
WLAN1× acc. to IEEE 802.11g, up to 54 Mbit/s
14 segment displayBoot-information, K-line mode, RS-mode, measurement, error codes
LEDsPower LED (green)
LAN status LED (green and yellow)
WLAN status LED (green and yellow)
4× CAN status LED (green and yellow)
2× RS status LED (green and yellow)
Dimensions (l×w×h)110 mm × 150 mm × 35 mm
HousingAluminium, protection class IP65
Operating temperature–20°C up to +60°C
Storage temperature–40°C up to +85°C
Power Supplya.) 6 up to 32 V DC with load-dump protection;
b.) via USB V = 5 V, IMAX < 500 mA (with Mini-B-USB connection)
