Compact interface with galv. isolated CAN- and a RS232-interface on USB 2.0
- 1× galv. isolated CAN interface acc. to ISO 11898 and 1× RS232
- Connection via USB 2.0
- Free configuration of baud rate, incl. 800 Kbit/s
- Powerful 32-bit microcontroller
- CODESYS Gateway-driver available
- Multi-Thread API for own applications
- Driver for Windows 2000 up to Windows 10 with 32- and 64-bit
- Single item price < €140
Housing and interfaces

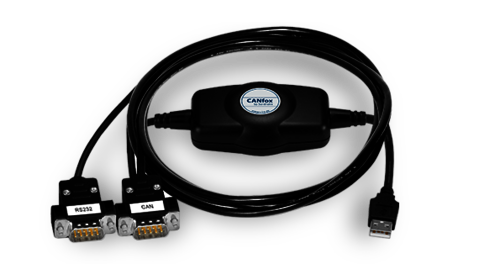

It is housed in a compact plastic case and offers a CAN channel and a RS232 channel. CAN is of CiA standard D-Sub9 design. Its USB 2.0 interface enables the CANfox to be used at any laptop, embedded PC or desktop PC. Once you have installed the driver you will benefit from hot plug and play, which is a connection of device to PC without restart. Consequently, CANfox® offers all necessary interfaces located in a tiny case for mobile or stationary use.
More performance, less costs
It is a powerful device within the Sontheim interface group with its 32-bit microcontroller for data-handling. However, the CANfox® is meant to be a flexible and very inexpensive tool.
Thus, you can configure the baudrate via software and adapt it to your processes. A single unit is available for less than €120 so please don’t hesitate to contact us for an offer.
Comprehensive software support
Of course, CANfox® is supported by all Sontheim software like CANexplorer 4 for CAN bus diagnostics, or MDT® for vehicle applications like diagnostics or End-of-Line processes. Additionally, with purchasing an interface you get the programming interface (API) for integrating the CANfox® into your own software. There is also a CODESYS support implemented in order to use the device for PLC and motion control tasks. Use it as a programming gateway for CODESYS-based PLCs or for downloading programms directly out of a CODESYS programming environment.
|CAN||1× CAN interface acc. to ISO 11898, via D-Sub9|
|RS232||1× RS232 interface, via D-Sub9|
|USB||1× Standard USB Typ A, 75 cm cable length|
|Baud rates||50 Kbit/s up to 1 Mbit/s, free configuration|
|Max. Data transfer||1 Mbit/s at 90 % bus load|

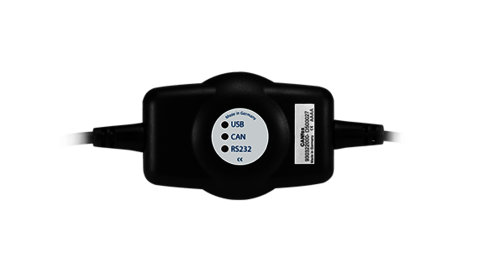

|LEDs||3× 3 mm LED|
|Operating temperature||–20°C up to +60°C|
|Storage temperature||–40°C up to +85°C|
|Rel. Humidity||20 % – 90 % non-condensing|
|Power supply||via USB interface|
|CANAPI (=Windows DLL)||Windows 2000, XP, Vista, 7, 8; 32-Bit. Windows 98 on request|
