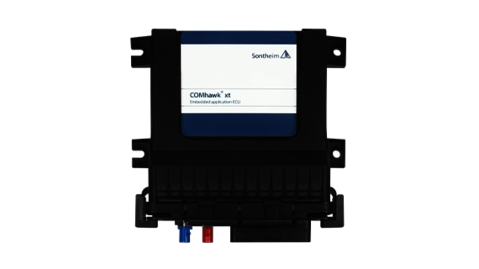

COMhawk® xt

Embedded application ECU for te­le­me­try and dia­gnos­tic app­li­ca­tions

Request
Product Flyer

Key Features

  • Powerful ARM Cortex A9
  • 4× CAN interface acc. to ISO 11898
  • GNSS
  • 2G/LTE
  • WLAN acc. to IEEE 802.11 b/g/n
  • 1× Ethernet, 10/100 Mbit/s
  • 4× DI, 1×DO (500 mA)
  • Data logging
  • IP67 and vibration protected
  • Linux

Description

Housing and interfaces
The new COMhawk® xt has four CAN in­ter­faces and one Ethernet connection. Wi-Fi and a 2G/LTE mobile connection are available for wireless data ex­change. In addition, the COMhawk® xt is equipped with a GNSS re­cei­ver for po­si­tio­ning. Further equipment options in­clude one 3-axis acceleration sensor, a tem­pe­ra­ture sensor and four digital inputs and one digital output (500 mA). The data can be stored on an internal memory of 16 GB (up to 64 GB), or transferred directly to a cloud sys­tem for further processing.


Wide range of applications
COMhawk® xt can be used in various applications of mobile machinery. From the simple data logger that wirelessly trans­mits the recorded operating data, to acentral com­mu­ni­ca­tion, te­le­me­try and dia­gnos­tic gate­way that combines various com­mu­ni­ca­tion standards. The ex­ten­ded temp­er­a­ture range from –20°C to +80°C and the com­pact housing with protection class IP67 ensure com­pre­hen­sive pro­tec­tion even under ex­treme vi­bra­tions and tem­per­a­tures. The Linux operating system also offers a simple and optimal basis for creating OEM app­li­ca­tions without increased effort and costs.

Technical Data

CPU32-bit microcontroller, Cortex-A9 (single/dual core)
RAM512 MB DDR3 RAM (opt. up to 1 GB)
Memory16 GB eMMC NAND Flash (opt. up to 64 GB)
CAN4× CAN interface acc. to ISO 11898
Ethernet1× Ethernet, 10/100 Mbit/s
WLAN1× IEEE 802.11 b/g/n; Client- and Accesspoint-Mode
GNSSGPS/GLONASS, Beidou
2G/LTEGSM/GPRS/EDGE/LTE
IOs4× DI, 1× DO (500 mA) (further IOs on request)
RTC2 weeks buffering
Plug30-pole automotive plug

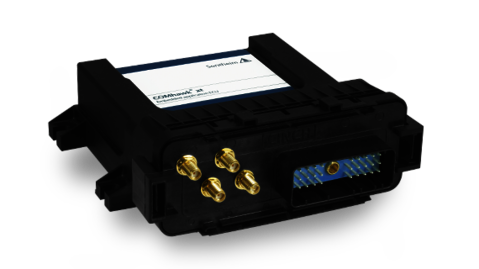

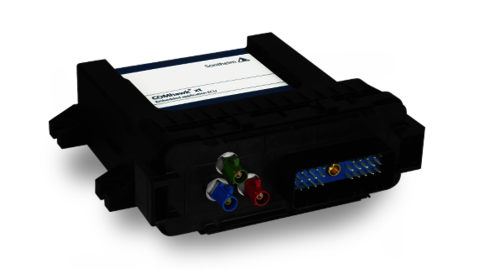

Antenna connectionexternal, 3× FAKRA codied (opt. SMA)
Operating systemLinux
HousingIP67
Dimensions (l×w×h)approx. 130 mm × 124 mm × 38 mm
Weightapp. 375 g
Operating temperature–20°C up to +80°C (higher temperature class on request)
Storage temperature–40°C up to +85°C
Power supply6–32 V DC, incl. load dump protection
